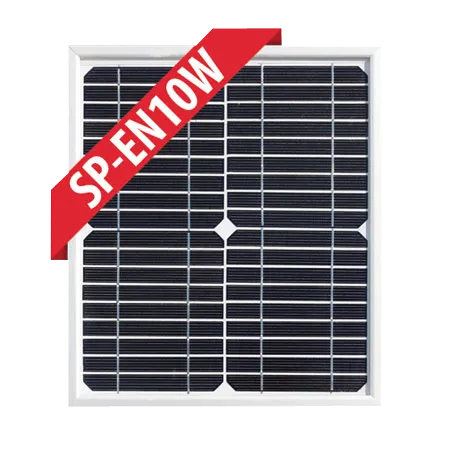

10w Fixed Mono Solar Panel
10w Fixed Mono Solar Panel
Regular price$6200
$62.00
/
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
| Enerdrive Part Number | SP-EN10W |
|---|---|
| Max Power Pm(W) | 10 |
| Power Tolerance % | ± 3% |
| Max Power Voltage Vm(V) | 17.3 |
| Max Power Current Im(A) | 0.60 |
| Open Circuit Voltage Voc(V) | 21.3 |
| Short Circuit Current Isc(A) | 1.73 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 320 x 279 x 30 |
| Weight (kg) | 1 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
- While we hold most stock on hand, some items may come to you directly from our suppliers.
