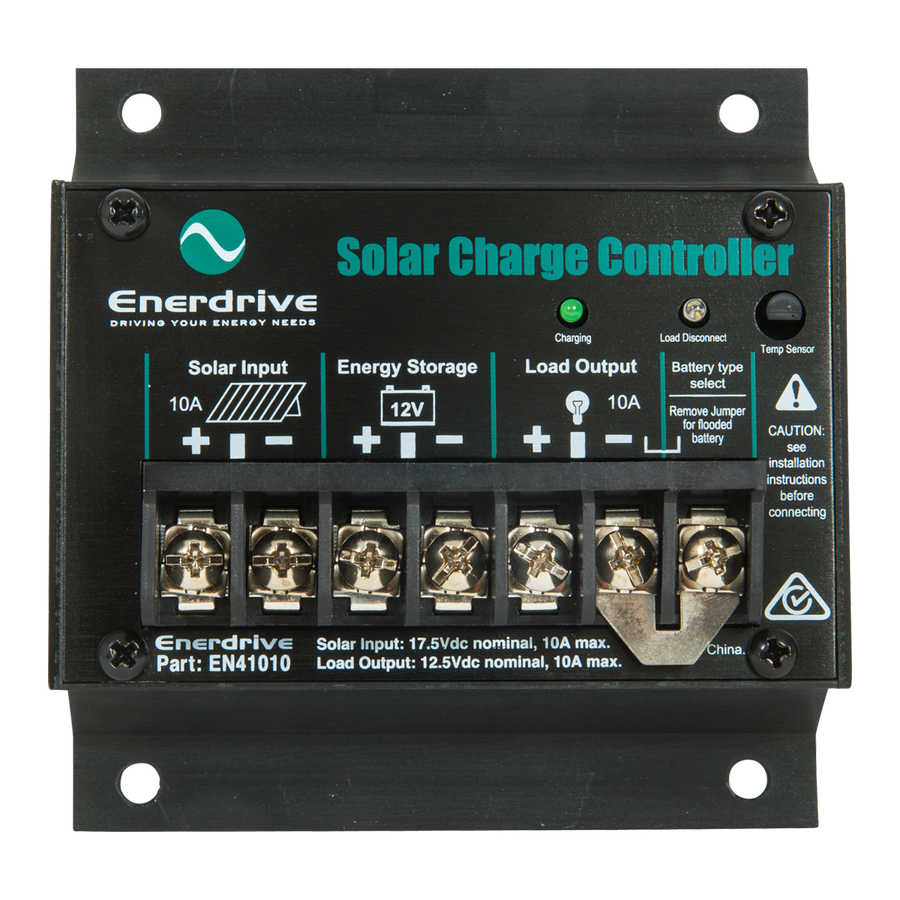

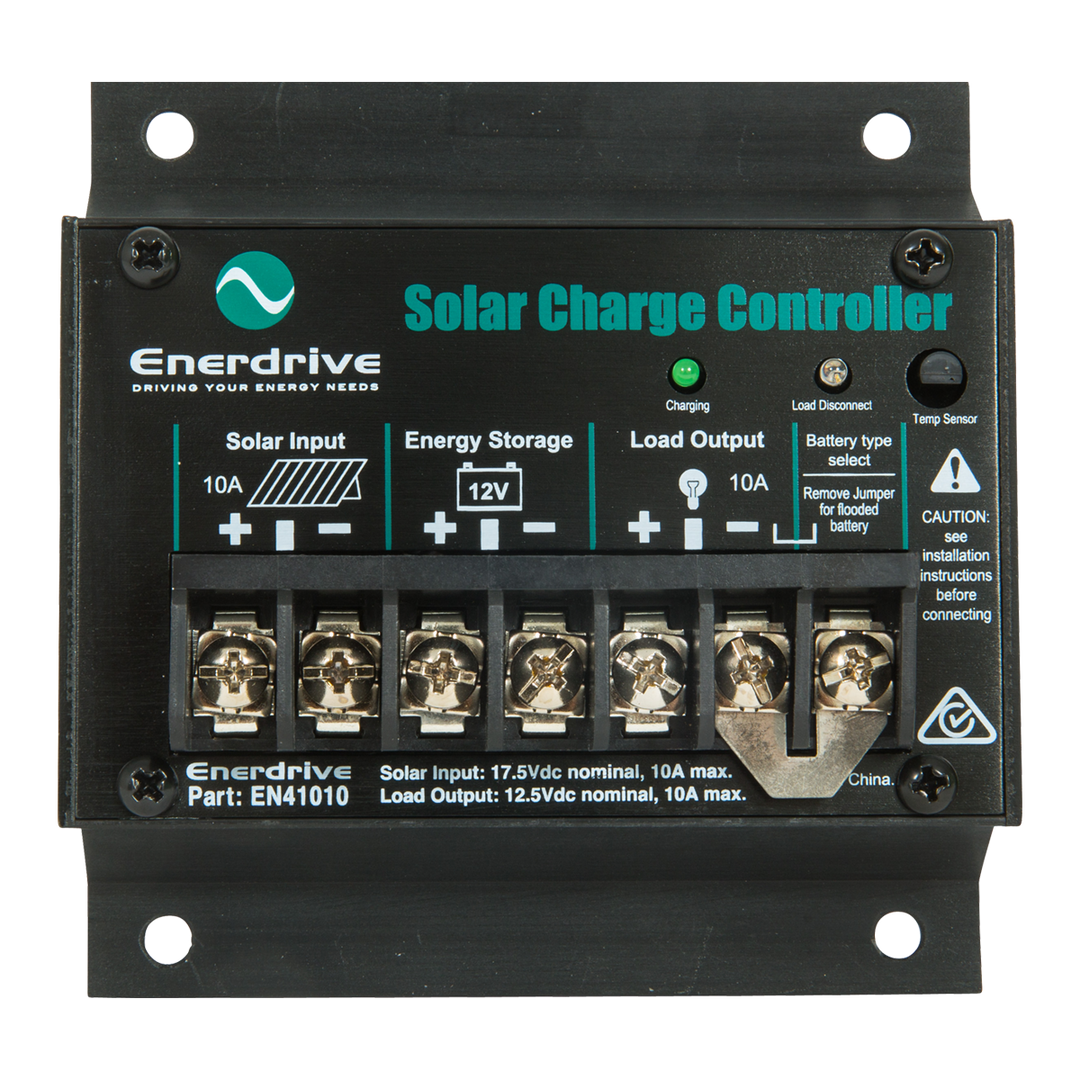

10amp Solar Charger Controller
10amp Solar Charger Controller
Regular price$9590
$95.90
/
Enerdrive Solar Charge Controller benefits include:
- Protects battery from overcharge and discharge
- Only for 12 Volt solar panels and batteries
- Handles up to 10 Amps of Array Current
- Handles up to 180 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12V batteries in a fully charged state
Product Features:
- LED status indicator provides quick reference to Charger, Battery and load status
- Selectable battery type
- Temperature compensation
- High precision on voltage set point
- Wall mountable
| Enerdrive Part Number | EN41010 | EN41020 |
|---|---|---|
| Battery voltage | 12 Vdc | 12 Vdc |
| Max. PV panel open circuit voltage | 26 Vdc | 26 Vdc |
| Maximum charge current | 10A | 20A |
| Maximum load current | 10A | 20A |
| Maximum load current | 20 A for 1 minute | 40 A for 1 minute |
| Operational Current (no load & no PV) | <10 mA | <15 mA |
| Regulated battery charging voltage | ||
| Flooded Battery | 14.6 Vdc | 14.6 Vdc |
| Sealed Battery | 14.2 Vdc | 14.2 Vdc |
| Operational Current (no load & no PV) | <10 mA | <10 mA |
| Voltage across terminal (PV to Battery) | <0.15 Vdc | <0.15 Vdc |
| Voltage across terminal (Battery to Load) | <0.10 Vdc | <0.10 Vdc |
| PV Reverse Polarity Protection | Yes | |
| Battery Overcharge Protection | ||
| Flooded Battery | 14.6 Vdc | 14.6 Vdc |
| Sealed Battery | 14.2 Vdc | 14.2 Vdc |
| Load Overdischarge Protection | <11.5 Vdc | <11.5 Vdc |
| Load Reconnected Voltage | 12.6 Vdc | 12.6 Vdc |
| Battery Chargers Stages | 2 Step: Bulk and Float | |
| Recommended Wire Size | #12 AWG | #10 AWG |
| Operating temperature | -40°C – 60°C | -40°C – 60°C |
| Dimensions (H x W x L) | 3.4 x 10.5 x 10.5 cm | |
| Weight | 0.3 Kg | |
| Warranty | 2 Years | |
| Note: Specifications subject to change without notice. | ||
- While we hold most stock on hand, some items may come to you directly from our suppliers.
