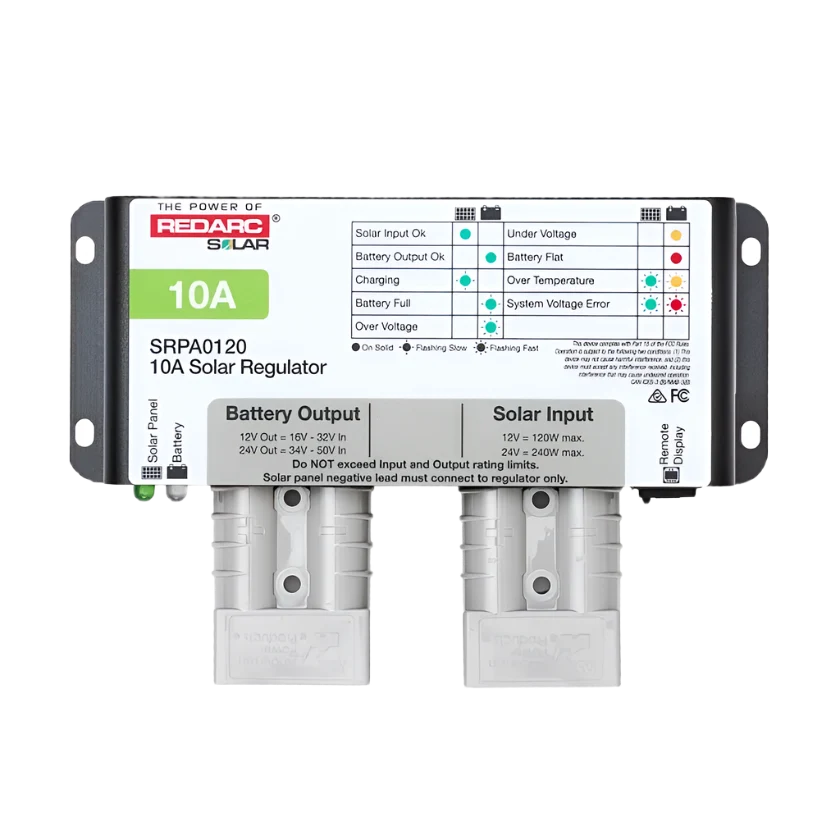

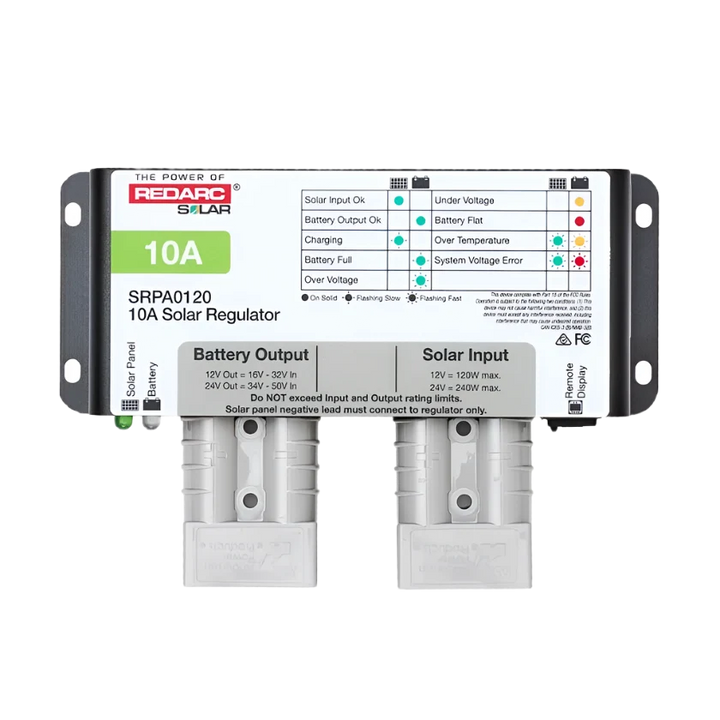

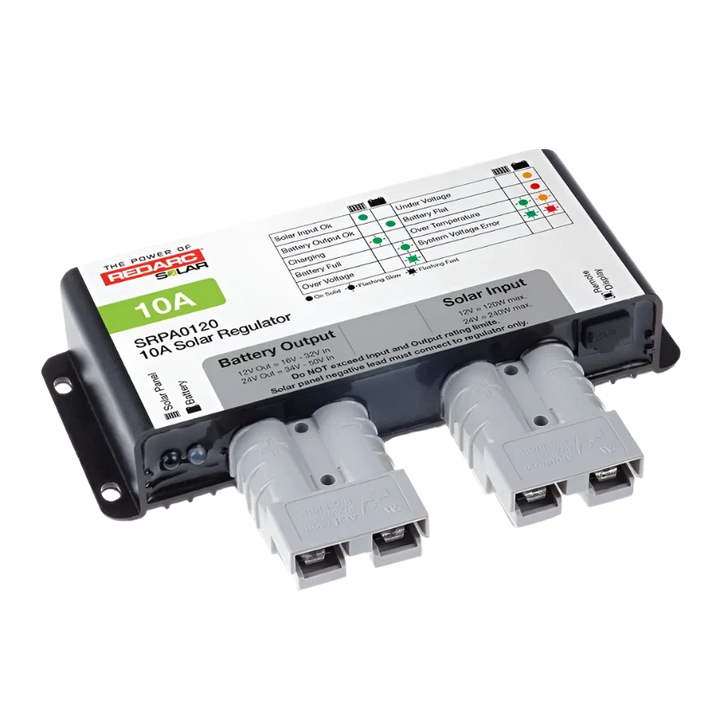

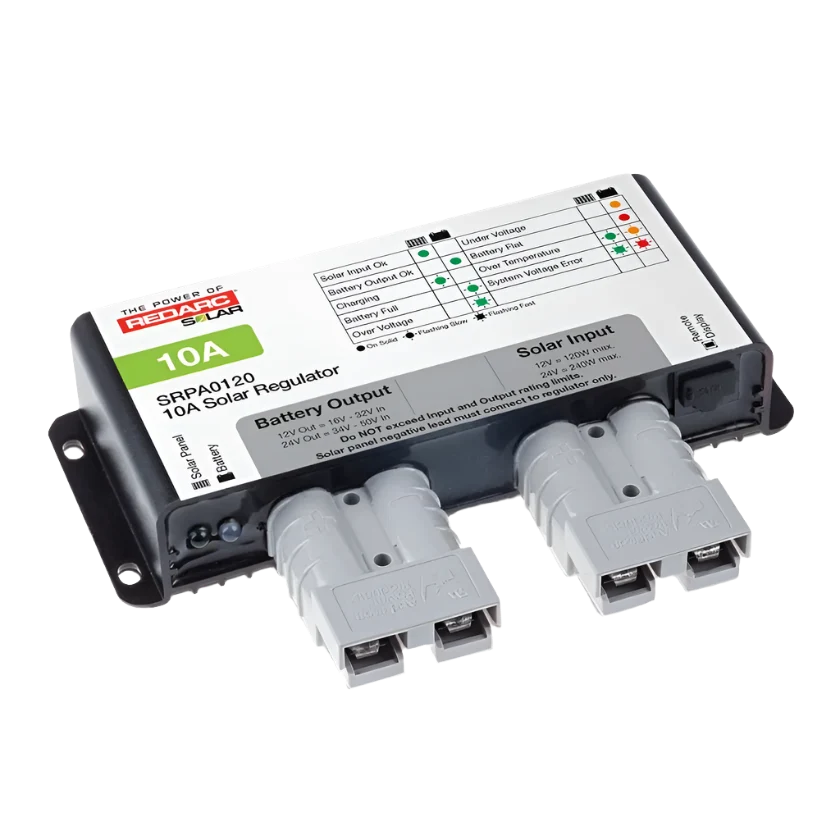

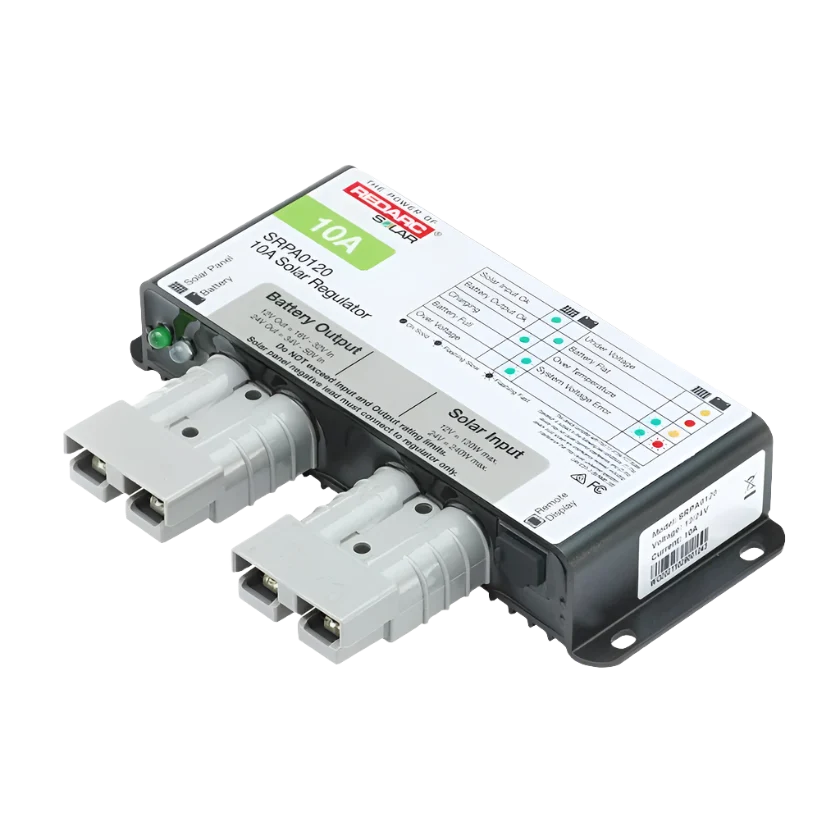

10A Solar Regulator

10A Solar Regulator

Regular price $176.00
/
Tax included. Shipping calculated at checkout.

REDARC’S newly designed 10 Amp Solar Regulator comes with the Anderson™ SB™50 connectors and works our monocrystalline portable solar panel and solar blanket range. REDARC’s 10 Amp Solar Regulator acts as the go between to transfer power generated from the panels to the battery.

Featuring multistage charging; boost, absorption and float, REDARC’s 10 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.

It will work with multiple chemistry batteries including AGM, Standard and Calcium*, and is ideal for permanent installation or portable systems, and has multiple levels of protection including over temperature, over charge and reverse polarity.

Features

  • Multi-stage charging- boost, absorption, and float
  • Works with multiple battery types (REDARC Solar Remote Monitor required)
  • Ideal for permanent installation or portable systems
  • Multiple levels of protection – over temperature, over charge, reverse polarity
  • Genuine  Industry Standard  Anderson™ SB™50 plug connection

Optional Monitor

*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.

Specifications
Max. Power Voltage 120/240W
Operating Temperature 31°C to 55°C
Weight 480 g
Height 28 mm
Width 153 mm
Depth | Length 98 mm
Warranty 2 Years
Connector Type Anderson™ SB™ 50
Input Voltage 12V / 24V
Max. Rated Output Current 10A
