120w Monocrystalline Folding Solar Panel Kit
120w Monocrystalline Folding Solar Panel Kit
Looking for an off-the-shelf portable folding solar panel kit for your auxiliary battery setup? REDARC’s monocrystalline portable camping solar panels are the perfect addition to any dual battery or off-road setup.
Folding out to 1030 × 715 × 25mm means that this panel tucks away neatly in the vehicle but opens up to capture an effective amount of sun power to keep you in-charge.
This ultralightweight, un-glazed panel ensures it is less fragile than many other folding solar panels and features an ETFE (ethylene tetrafluoroethylene) coating designed to protect the Monocrystalline solar cells from damage, as opposed to employing a traditional glass design like many other portable products.

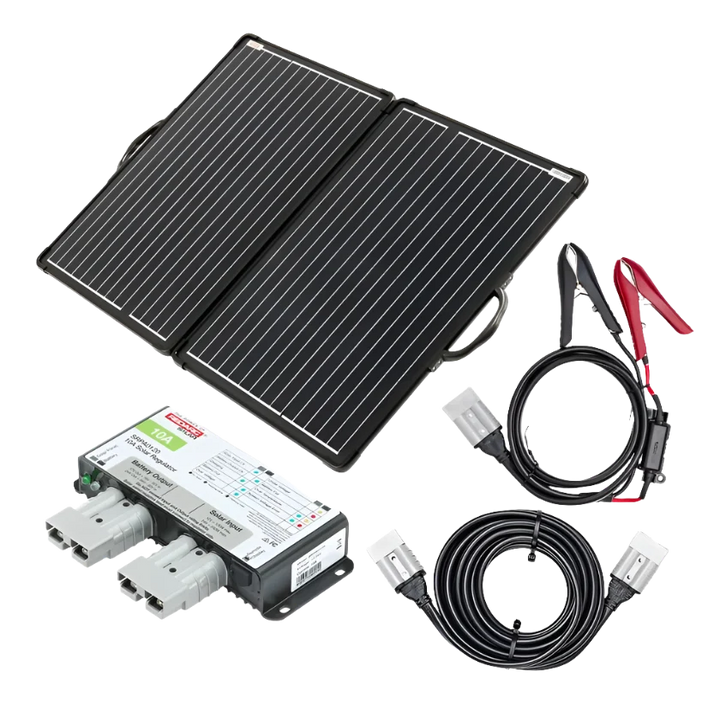

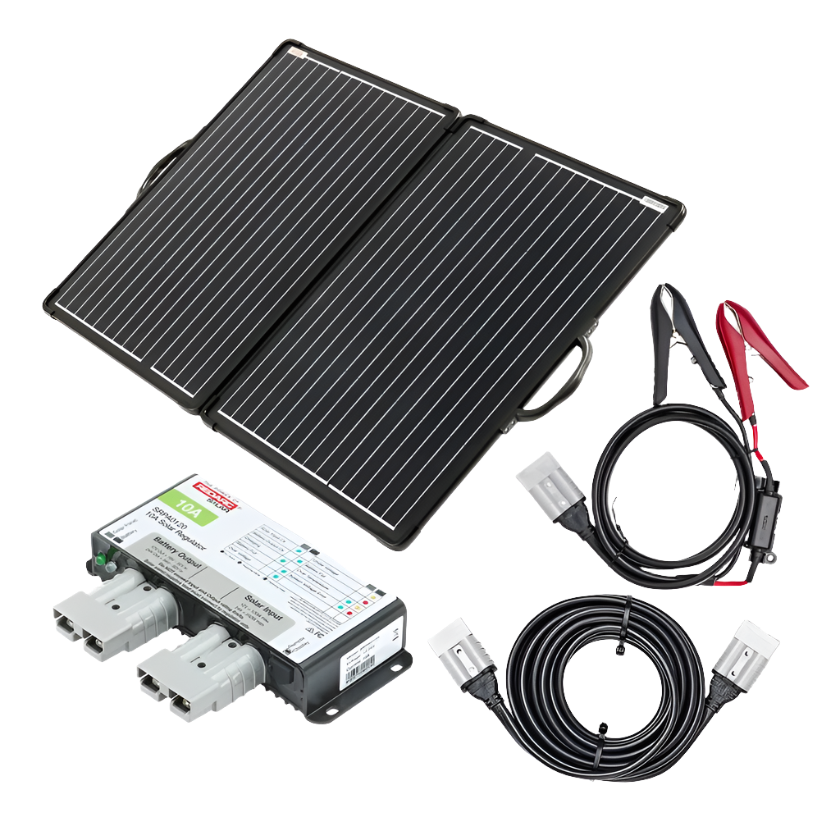

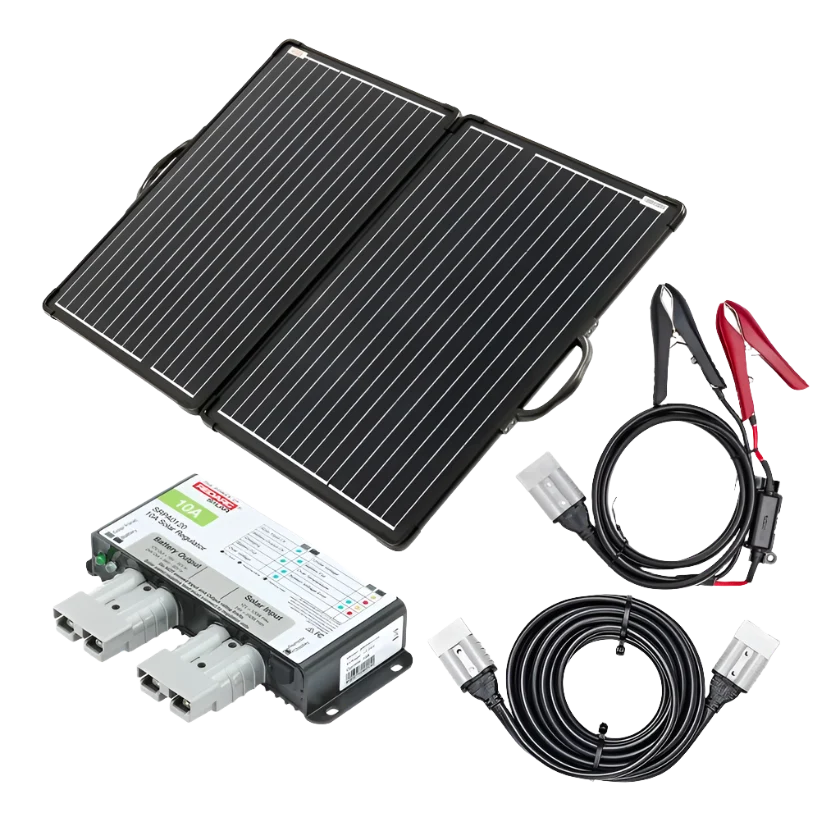

This kit includes:
- 120w folding solar panel
- 5m anderson to anderson cable
- 1.5m anderson to battery clip
- 10amp Solar Regulator
The Folding Solar Panels will feature genuine industry standard Anderson™ SB™ 50 connectors for convenience of plug-and-play portability and includes a free protective carry bag.
Perfect to add charge via the sun to your in-vehicle battery charger or battery management system for extended stays or additional power to run 12v accessories.
Just need the panel? You can choose to simply buy the 120W folding panel if you already have the regulators and cables on-board.
*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.
Specifications | |
---|---|
Open Circuit Voltage | 24.0v |
Watts | 120W |
Frame or Material | Anodized aluminium |
Max. Power Voltage | 20V |
Recommended Regulator | SRPA Anderson™ Regulator |
Short Circuit Current | 6.48A |
Conversion Efficiency | 20.60% |
Operating Temperature | −40°C to +85°C |
Cable Length | 300 mm |
Weight | 9.5 kg |
Height | 25 mm |
Width | 790 mm |
Depth | Length | 1350 mm |
Warranty | 2 Years |
Dimensions Open | 1030 x 715 x 25 mm |
Dimensions Closed | 515 x 715 x 25 mm |
Power Tolerance | ± 3% |
Max Power Current | 6A |
Connector Type | Anderson™ SB™ 50 |
Peak Power | 120W (2x60w) |
