12v 20a Smart Start DCDC 3 Stage Battery Charger

12v 20a Smart Start DCDC 3 Stage Battery Charger

Regular price $650.00
/
Tax included. Shipping calculated at checkout.

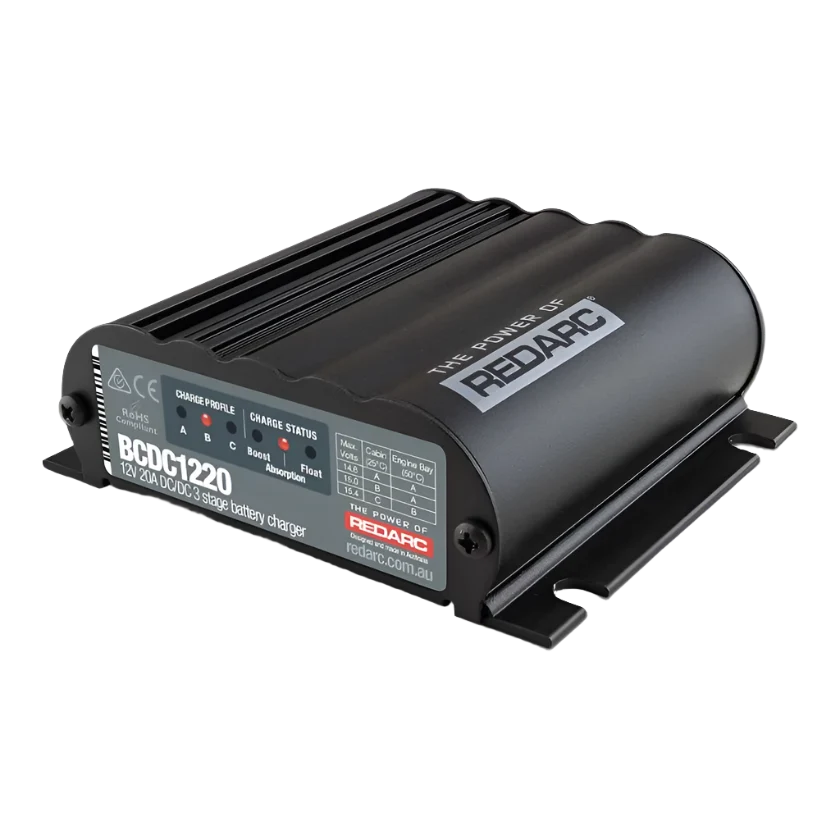

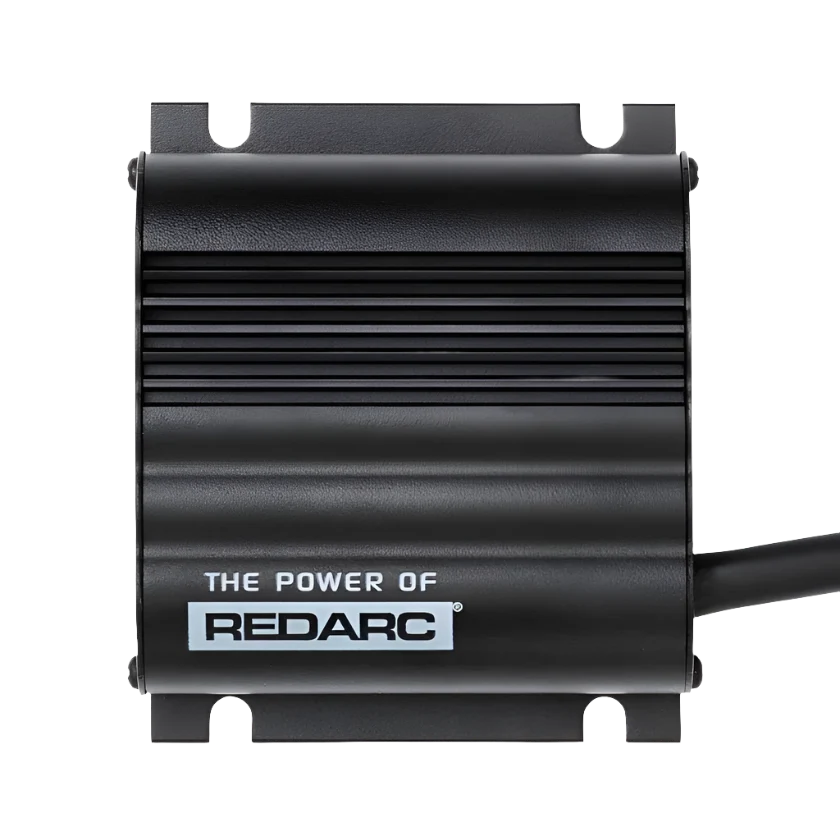

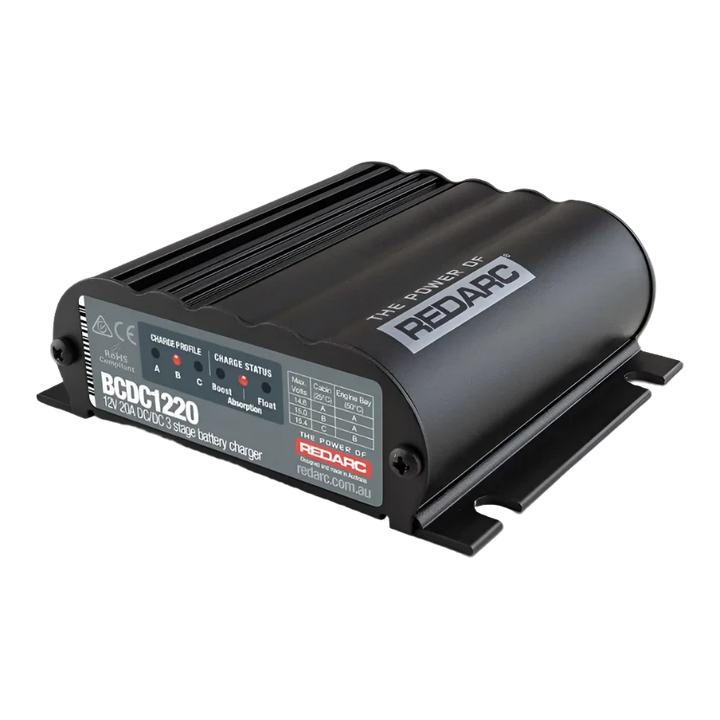

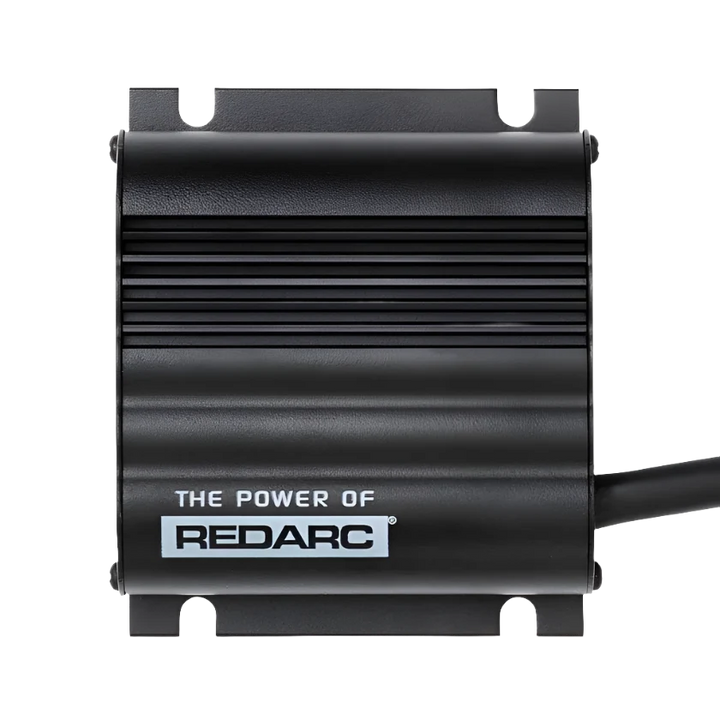

The REDARC BCDC1220 is a 12 Volt 20 Amp In-vehicle DC to DC battery charger designed to keep your battery charged whilst driving. Featuring multi stage battery charging, the system charges your auxiliary battery from your vehicle to a proven 100%.*

*large capacity battery banks may require a few cycles to fully charge.

The BCDC charger will work from a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems, and is potted and rugged making it perfect for under bonnet installations.

By providing a unique charging profile to each specific battery type, the smart charger is able to achieve and maintain 100% charge for your auxiliary battery. You can charge your auxiliary battery no matter what your battery is.

Proven and Tested

Compact in size, easy to install and fully sealed - water, dust and vibration are no match for the in-vehicle DC DC charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.

With an ever increasing number of electrical accessories and devices being used when travelling around Australia, along with more complex vehicle electrical systems than seen in years gone by, having the right DC battery charger has never been more important.

Designed, built and tested in Australia for our unique conditions, the BCDC in-vehicle DC to DC charger won’t let you down.

Features:

  • Multi Stage DC to DC Battery Charger
  • Start Battery Isolator
  • Fully sealed
  • No fan for super quiet operation
  • Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
Specifications
Battery Chemistry Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
Continuous Rating 12A
Power Type - AC DC DC TO DC
Nominal Output Power 148W (12V vehicle) / 294W (24V vehicle)
Input Fuse Rating 16A to 23A (Not supplied)
Suitable For 12V Systems Yes
Suitable For 24V Systems Yes
MPPT Solar Regulator No
Cabin/ Canopy Install Yes
No Load Current <100mA
Trailer Install Yes
Engine Bay Install Yes
Max. Charging Voltage 15.3V
Output Fuse Rating 31A (Not supplied)
Operating Temperature -20°C to 79°C
Output Voltage 12V DC
Max. Rated Output Current 11A (12V vehicle) / 20A (24V vehicle)
Input Voltage 9 - 32V
Standby Current <5mA
Connector Type Bare wire
Weight 30 oz
Width 119mm
Height 38mm
Depth | Length 99mm
Warranty 2 Years
