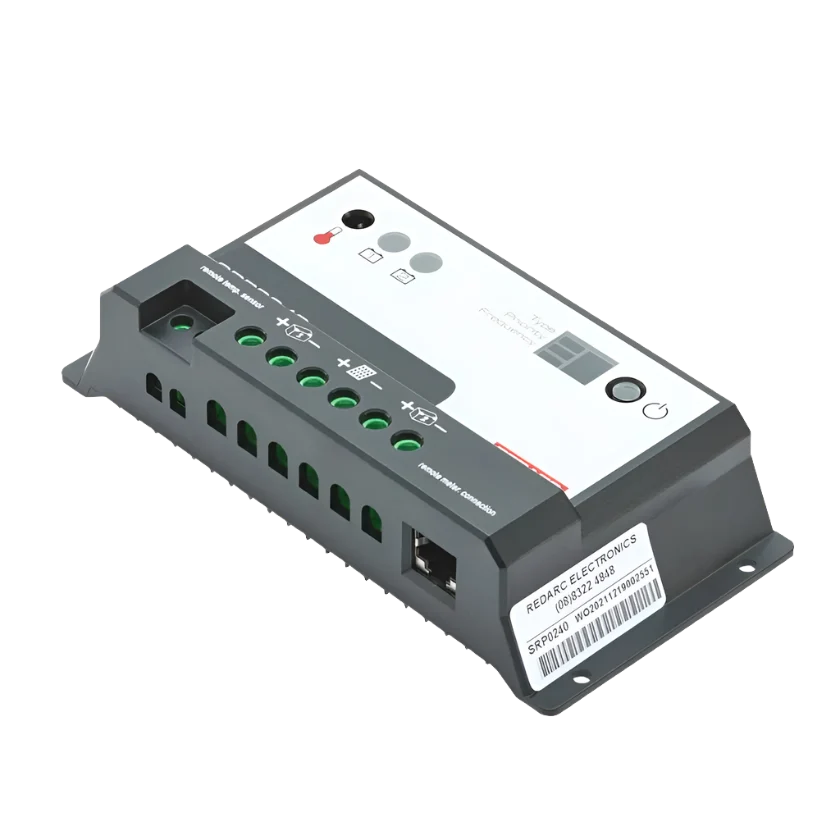

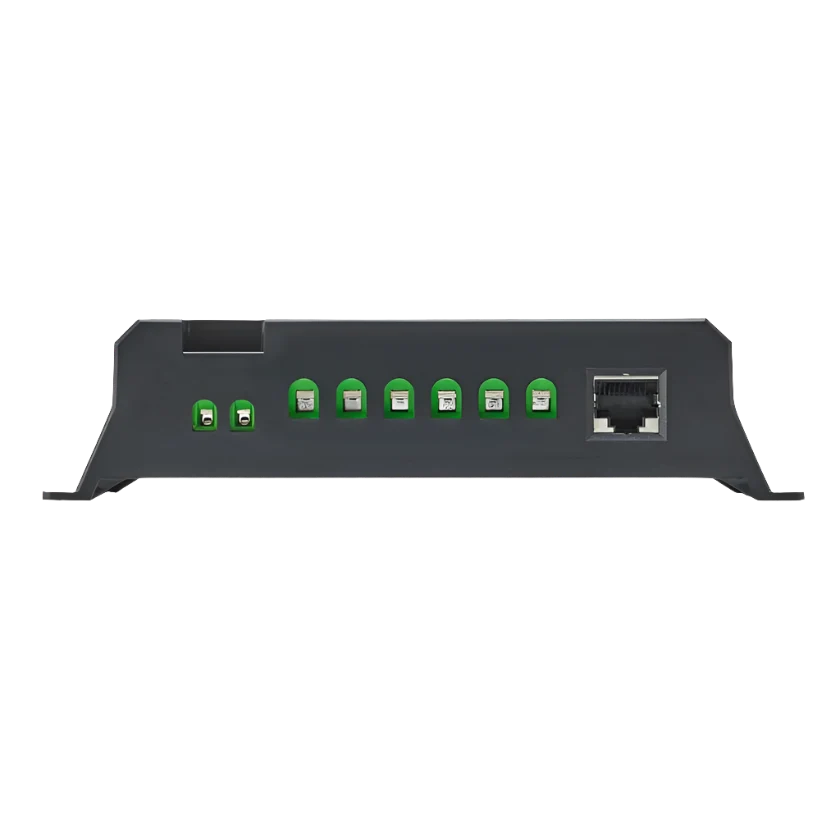

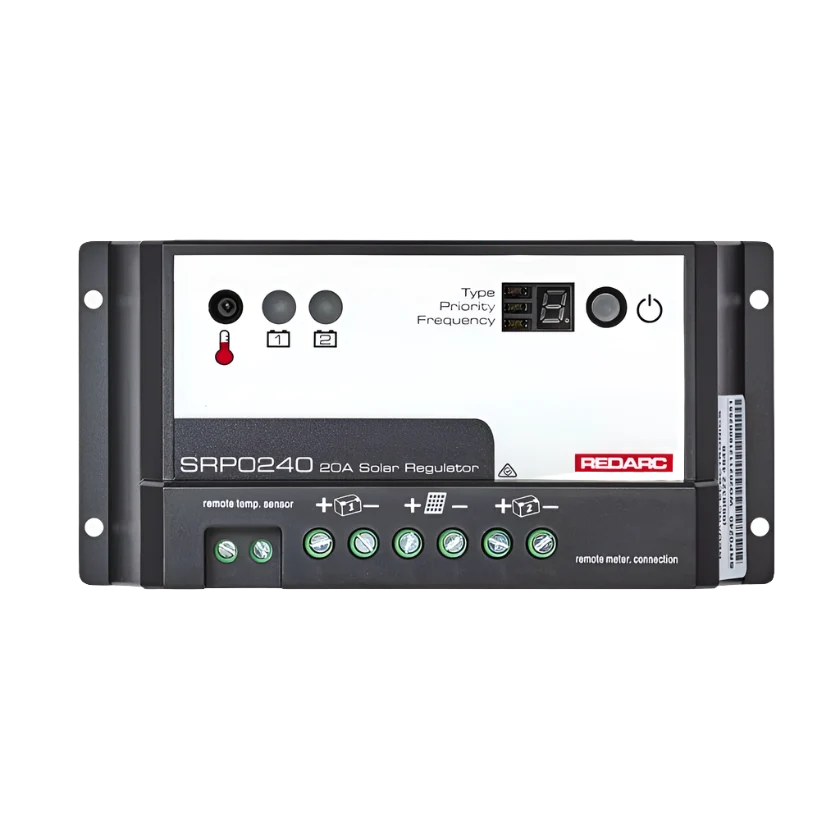

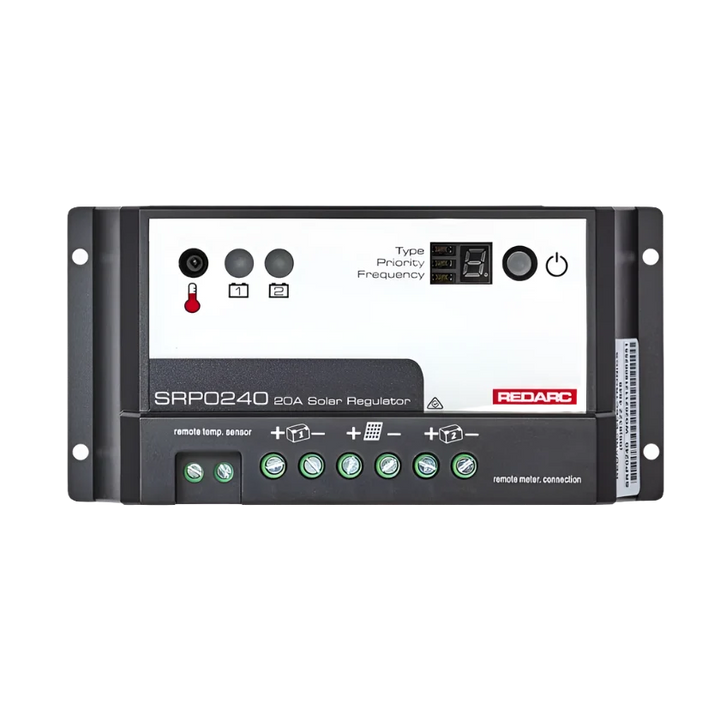

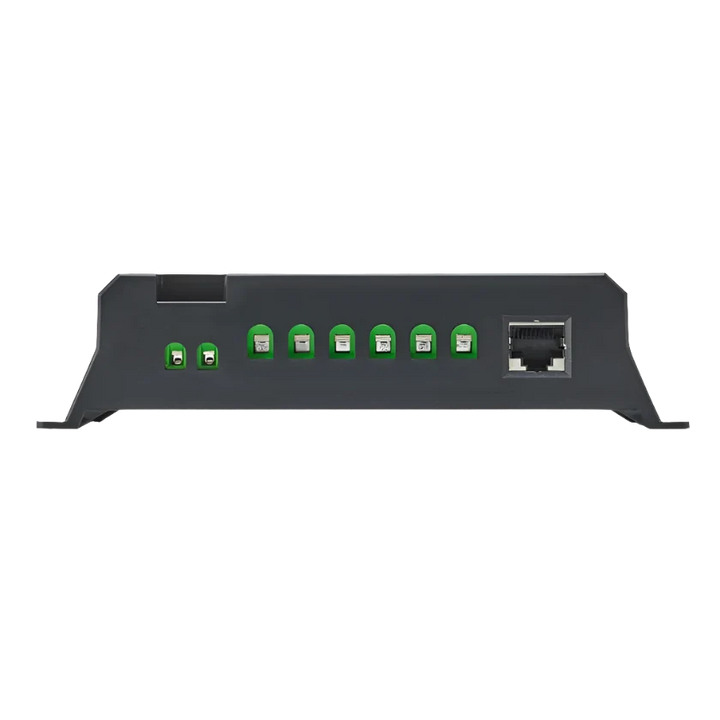

20A Solar Regulator

20A Solar Regulator

Regular price $183.00
/
Tax included. Shipping calculated at checkout.

REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries.
Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models.

Features:

  • Multi-stage charging
  • Dual battery outputs
  • LED indication
  • Remote monitor (optional)
  • Remote temperature sensor (optional)
  • 2 year warranty

The SRP regulators are primarily used with the SMR range of solar panels. And when the Anderson to bare wire connector cable (SRC0016) is purchased, the solar blankets and folding solar panels can use the SRP range of solar regulators.

Optional Monitor:

REDARC recommends the purchase of the REDARC Solar Remote Monitor (SRP0240-RM) to change battery types and configuration settings.

Specifications
Current Rating 20A
Standby Current <4mA
Weight 240 g
Height 37 mm
Width 76 mm
Depth | Length 153 mm
Warranty 2 Years
System Voltage 12V / 24V DC
Input Voltage 12V / 24V
Max. Charging Voltage 14.8V / 29.6V
Max. Rated Output Current 20A
