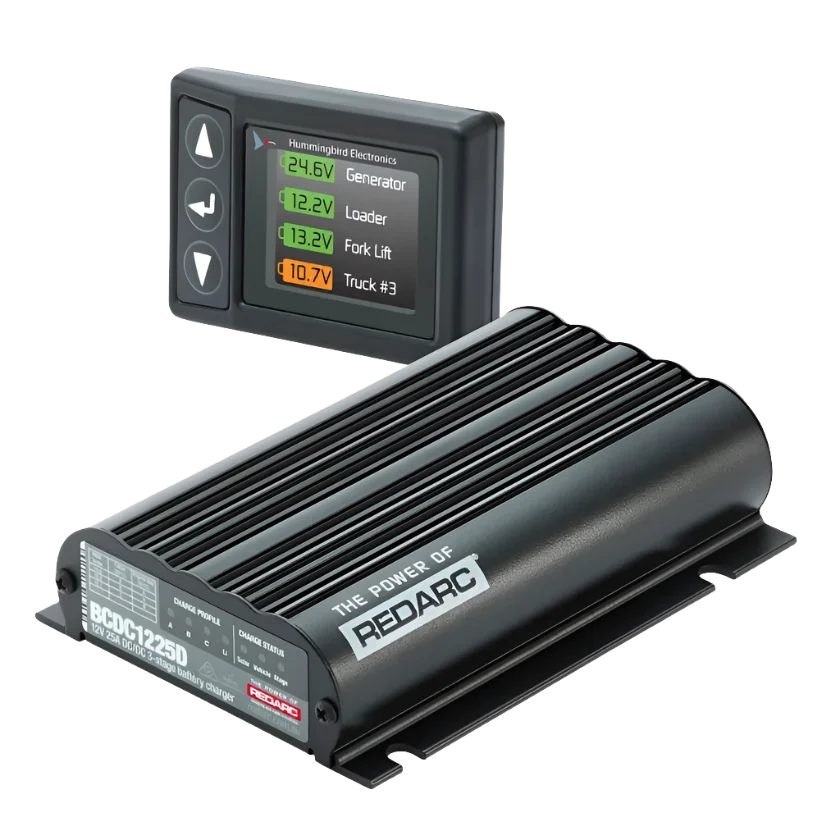

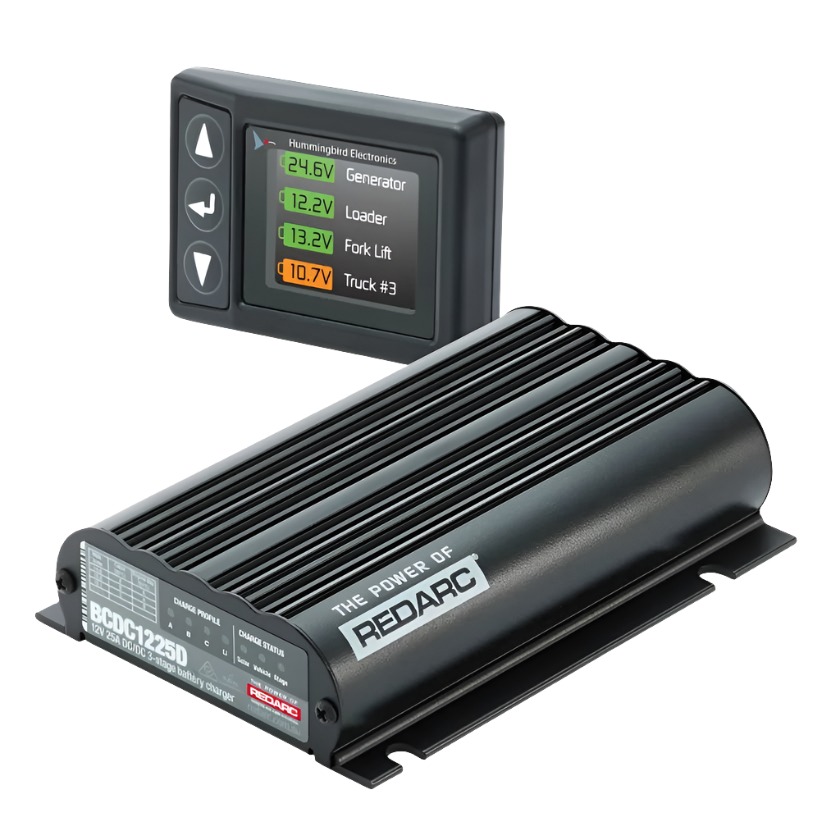

RF Battery Monitor & DC Charger Kit
RF Battery Monitor & DC Charger Kit
Avoid downtime and know that your batteries are getting the charge they need with this monitoring and charging kit. Perfect for both work and leisure, this 12v battery monitoring system is ideal for those who need reliable 12v power that won’t let them down.
With its award-winning technology, REDARC’s BCDC will charge your battery to a proven 100%, so it’s ready to go when you are. In addition to being solar ready, the BCDC1225D will work with either standard or variable/smart alternators, and is suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.
Know when the batteries are getting low thanks to the Hummingbird RF Battery Monitor’s buzzer notifying you of low state of charge. Great for fault finding and fleet monitoring, this wireless battery monitor can monitor up to 16 batteries, displaying each individual battery’s status down to a precise 100mV measurement. Know when it’s time to hit the road or top up with the RF Battery Monitor by Hummingbird and BCDC1225D.
What’s inside?
This monitoring and charging kit has everything you need to manage the battery levels of your fleet or adventure rig.
These include:
- RF Battery Monitor by Hummingbird (HMRF2000B) to monitor up to 16 auxiliary batteries
- 25amp DC Battery Charger (BCDC1225D) to charge your auxiliary battery
This multi-application unit can act as a 12v battery monitor and a 24v battery monitor simultaneously, making it the perfect fleet and recreational dual battery monitor.
Specification | BCDC1225D |
---|---|
Battery Chemistry | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
Continuous Rating | 25A |
Power Type - AC DC | DC TO DC |
Nominal Output Power | 375W |
Input Fuse Rating | 40A (Not supplied) REDARC FK40 recommended |
Solar Switch On Voltage | 9V |
Suitable For 12V Systems | Yes |
Suitable For 24V Systems | Yes |
Solar Input Voltage | 9 - 32V |
MPPT Solar Regulator | Yes |
Cabin/ Canopy Install | Yes |
No Load Current | <100mA |
Trailer Install | Yes |
Engine Bay Install | Yes |
Max. Charging Voltage | 15.3V |
Output Fuse Rating | 40A (Not supplied) REDARC FK40 recommended |
Operating Temperature | -10°C to 79°C |
Output Voltage | 12V DC |
Max. Rated Output Current | 25A |
Input Voltage | 9 - 32V |
Standby Current | <8mA |
Connector Type | Bare wire |
Weight | 35.3 oz |
Width | 119mm |
Height | 3.8mm |
Depth | Length | 165mm |
Specification | HMRF2000B |
---|---|
Height | 50 mm |
Width | 70 mm |
Depth | Length | 18 mm |
Warranty | 2 Years |
Operating Voltage | 9 - 32V DC |
