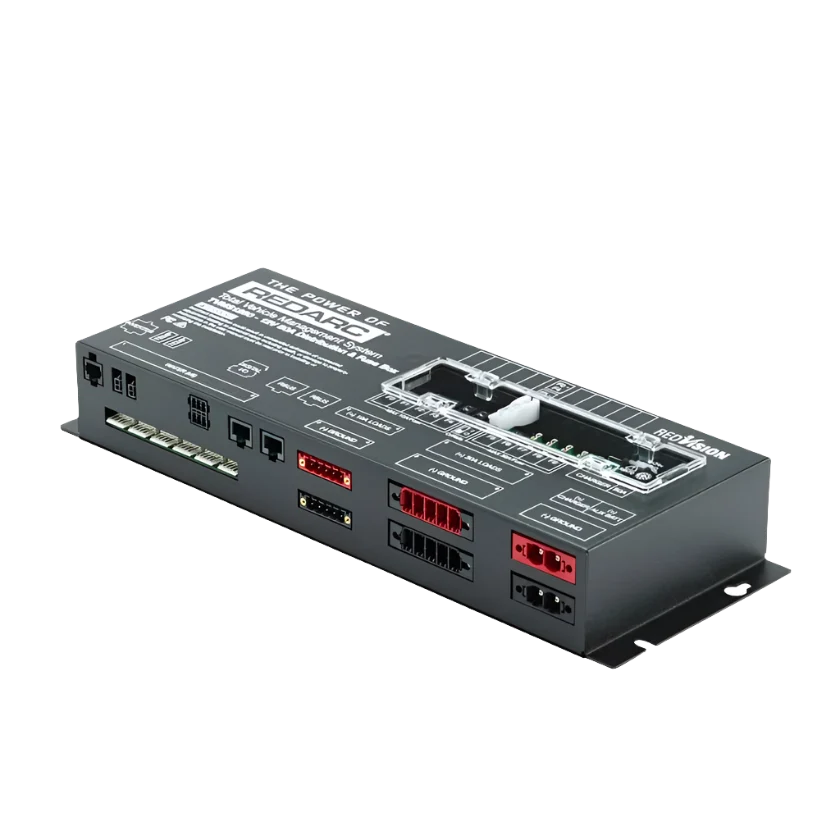

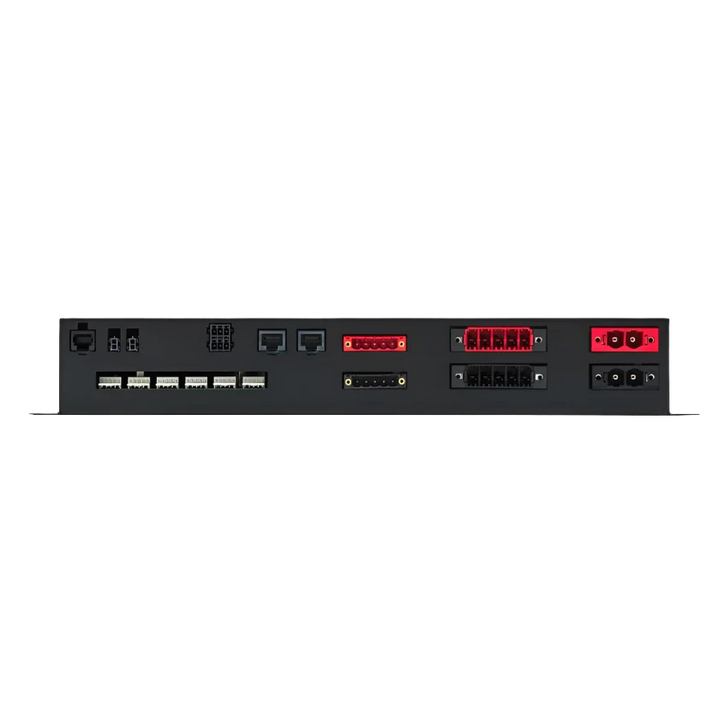

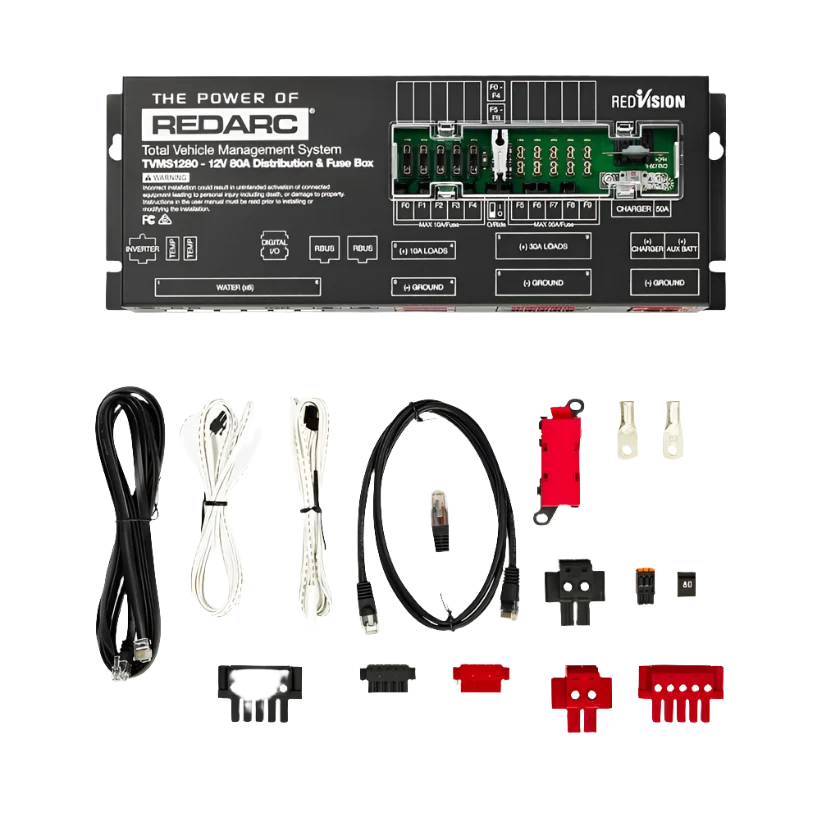

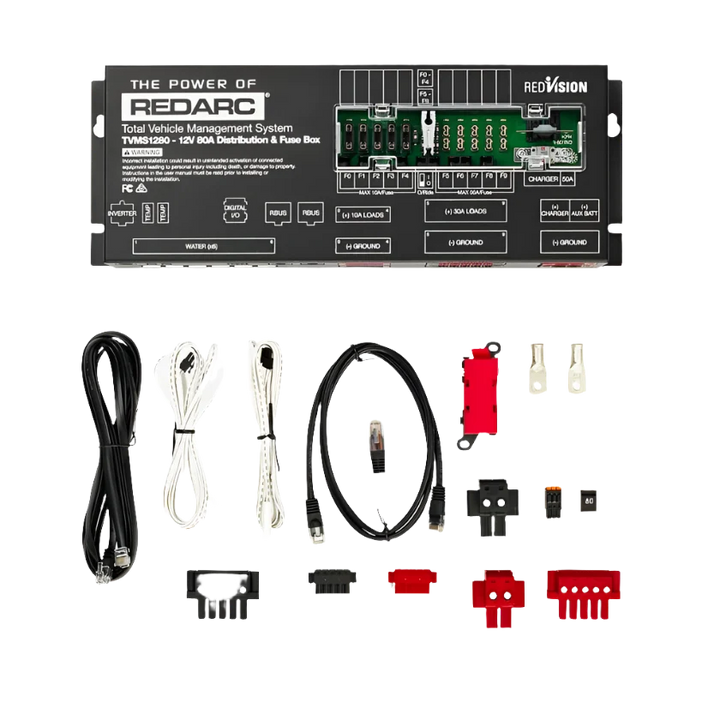

TVMS Prime Control Module

TVMS Prime Control Module

Regular price $1,831.00
Tax included. Shipping calculated at checkout.

This is an upgrade unit only, which requires an existing Manager30 and RedVision display unit in order to provide all functionality.


RedVision by REDARC provides an unprecedented level of control and automation to your 4x4, caravan, camper, RV or work vehicle. Control accessories such as lights, fridges, TVs and inverters via the physical screen or your Bluetooth connected mobile device.


When combined with the RedVision screen and Manager30 battery management system (sold separately), the TVMS Prime provides real time and accurate state of charge, power input/output and ambient temperature information.

Six dedicated tank level sensor inputs and two ambient temperature inputs make the Prime RedVision System the all-seeing eye of your power set up.


The Prime RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps.

Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices. With a max current of 80A, you’ll never be limited to how many devices you can run at once. A dedicated inverter channel brings the total number of channels to 11.

Take control outside with the connected Bluetooth app or use the included RedVision display.


Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system. Find out more here.


  • 5x 30A outputs
  • 5x 10A outputs
  • 80A maximum current
  • 6x tank sensor inputs
  • 2x temp sensor inputs
  • 1x voltage sensor input
  • 1x dedicated inverter output
  • Easy accessible fuses
  • Fully programmable
Weight 2.0 kg
Depth | Length 385 mm
Width 138 mm
Height 58 mm
Suitable For 24V Systems No
Suitable For 12V Systems Yes
Max. Charger Current 40A
Max. Battery Current 80A
MPPT Solar Regulator No
No. Switched Circuits 5 x 10A Max, 5 x 30A Max
Trailer Install Yes
Engine Bay Install No
System Voltage 12V
Cabin/ Canopy Install Yes
Operating Temperature -20°C to 60°C
